The RV 200 Ventilator is a new-generation ICU ventilator designed to meet a wide range of ventilation needs, from Intensive Care Units (ICU) and Operating Rooms (OR) to Post-Anesthesia Care Units (PACU), Emergency Departments, and intra-hospital transport.
Compact in size yet powerful in performance, the RV 200 enables clinicians to confidently manage even the most demanding clinical situations — anytime, anywhere.
Key Advantages of the RV 200 Ventilator
-
Compact and mobile design, suitable for multiple clinical environments
-
Built-in turbine, no central compressed air required
-
Full range of advanced ICU ventilation modes
-
Modern touchscreen interface, easy to operate and quick to learn
-
Comprehensive patient monitoring, even during transport
Advanced ICU Ventilation Modes
The RV 200 supports a wide range of ventilation strategies for critically ill patients:
-
Ventilation modes: VCV, PCV, SIMV (VCV/PCV), PSV, CPAP, DuoLevel, PRVC, APRV, AMV
-
Non-Invasive Ventilation (NIV) with excellent leak compensation
-
ATRC – Automatic Tube Resistance Compensation
-
Intellicycle technology to improve patient–ventilator synchrony
-
Oxygen Therapy (O₂ Therapy) to support recovery and weaning phases
👉 Suitable for critically ill patients, long-term ventilation, and weaning management.
Advanced Patient Monitoring at the Bedside
The RV 200 integrates comprehensive monitoring capabilities to support clinical decision-making:
-
Monitoring of up to 35 patient parameters
-
72-hour trend data and 20,000 event logs
-
Weaning indicators: P0.1, RSBI, NIF
-
Volumetric CO₂ monitoring (Mainstream)
-
SpO₂ monitoring with waveforms and numeric values
These features help clinicians accurately assess respiratory status and optimize ventilation therapy.

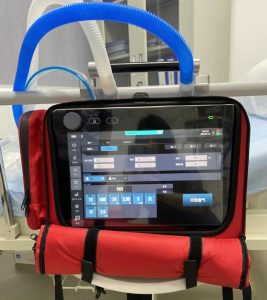

Ready for Intra-Hospital Transport
The RV 200 is designed to maintain ICU-level ventilation quality even during patient transport:
-
Built-in battery providing up to 4–6 hours of operation
-

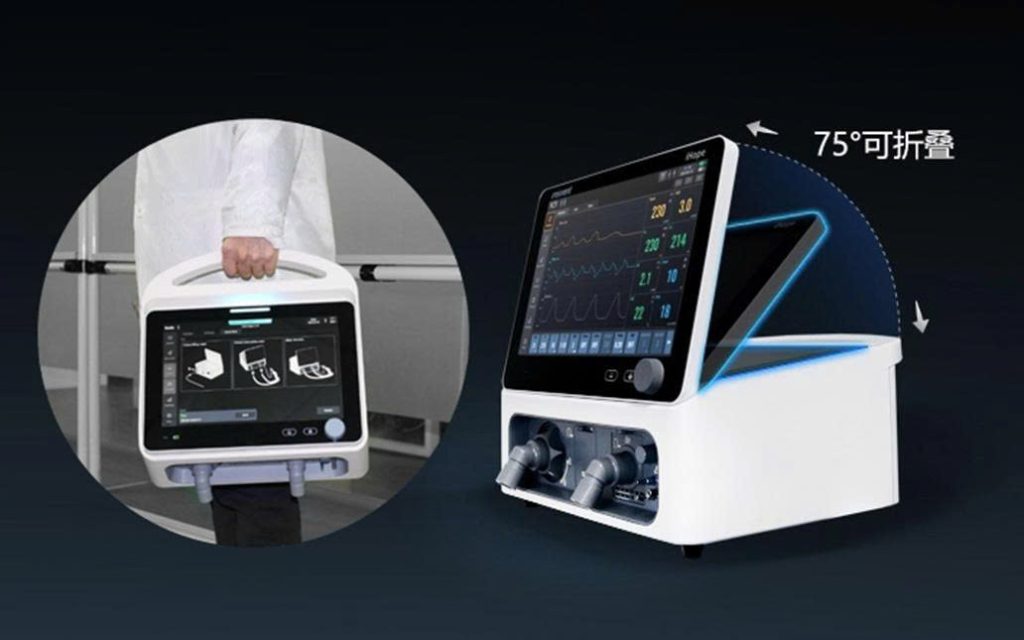

Tiltable display up to 75°, ensuring convenience during movement
-
Integrated SpO₂ and EtCO₂ monitoring, enabling continuous tracking of oxygenation and intubation status
-
Excellent leak compensation, ideal for Non-Invasive Ventilation (NIV)
-

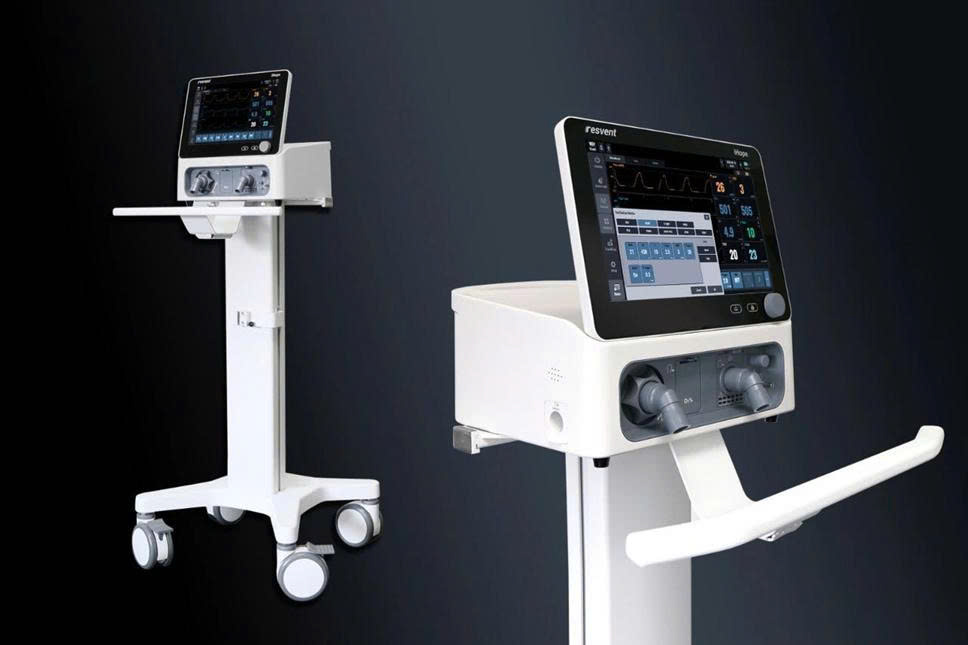

Transport trolley supporting two E-size oxygen cylinders, suitable for long-distance intra-hospital transport
User-Friendly Design – Easy to Operate
-

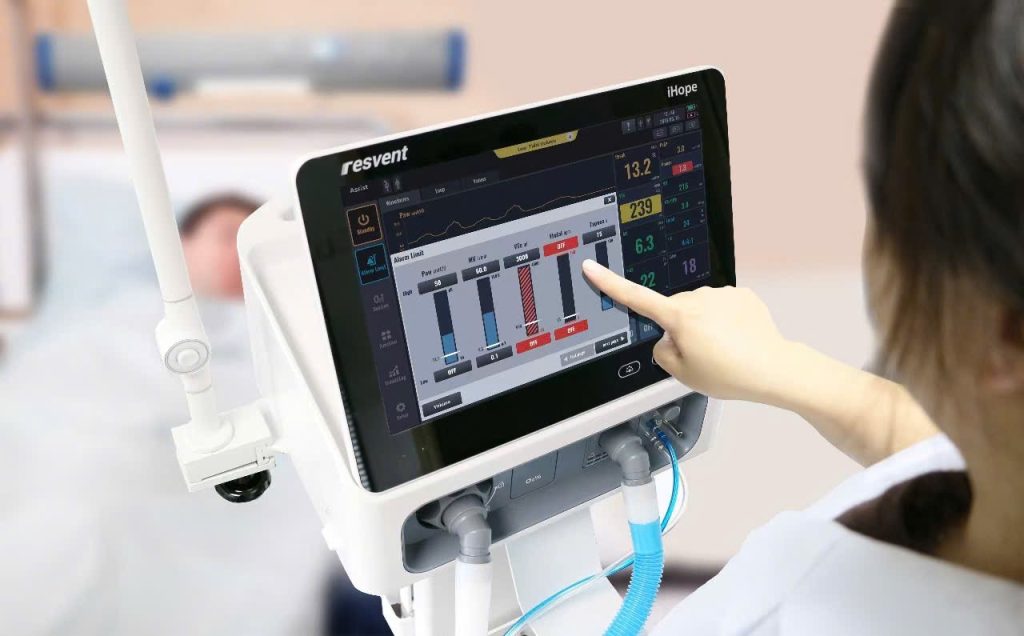

12.1-inch Ultra HD touchscreen, glove-friendly operation, next-generation anti-glare color display with a wide viewing angle
-
Adjustable screen tilt, suitable for various clinical environments
-
Quick access to key parameters and essential functions
-
ICU-style user interface, inherited from advanced ICU ventilators, reducing training time for clinical staff
Reliable Performance and Durable Hardware
-
High-performance turbine with ultra-low noise ≤ 45 dB(A)
-
Maximum flow up to 210 L/min
-
20,000 hours of operation before maintenance
-
Modular valve system, easy to remove and sterilize
-
Designed in compliance with ISO 80601-2-12 & ISO 80601-2-55, reducing cross-contamination risk
RV 200 – One Ventilator, Multiple Clinical Applications
From ICU, OR, PACU, Emergency Care to Intra-Hospital Transport, the RV 200 Ventilator delivers a flexible, reliable, and cost-effective ventilation solution. It is an ideal choice for hospitals seeking a comprehensive ventilator system that is easy to deploy, operate, and maintain.
